The setup information of the selected trackers are:

• Tracker Id



• Setup name



• Setup time



• Tracker setup time



• Start



• Stop



• Sampling interval



• Update rate



• Setup by



• Details:

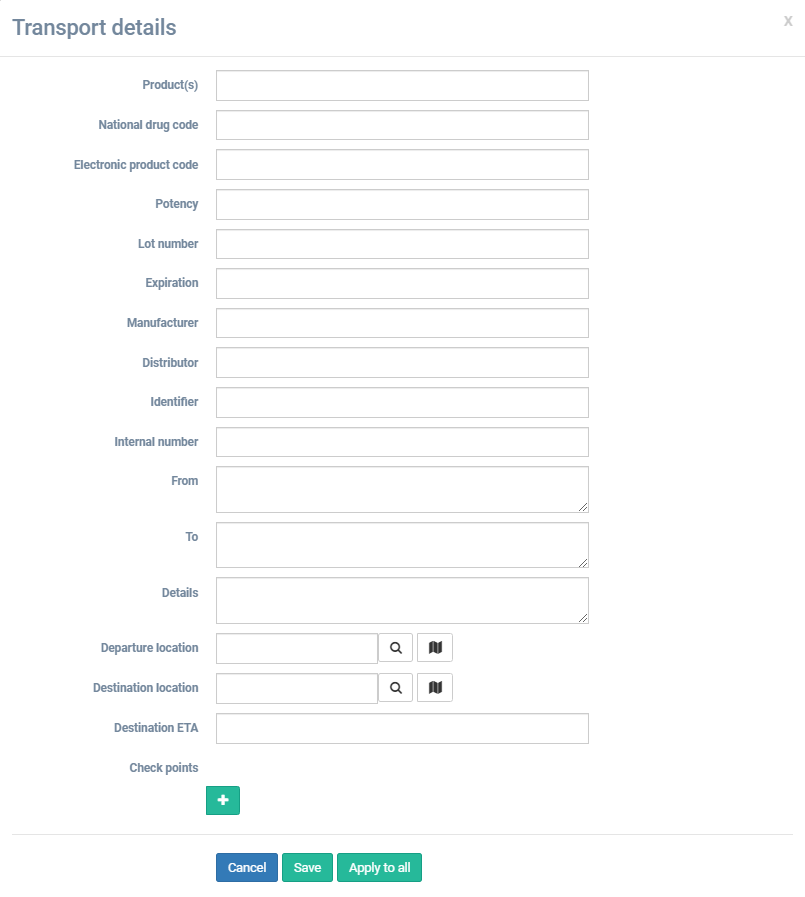

• Transport details



Click on Truck icon button.



Client on function about the needs, can customize the transportation details.

• Change stop time



Click on Clock icon button.

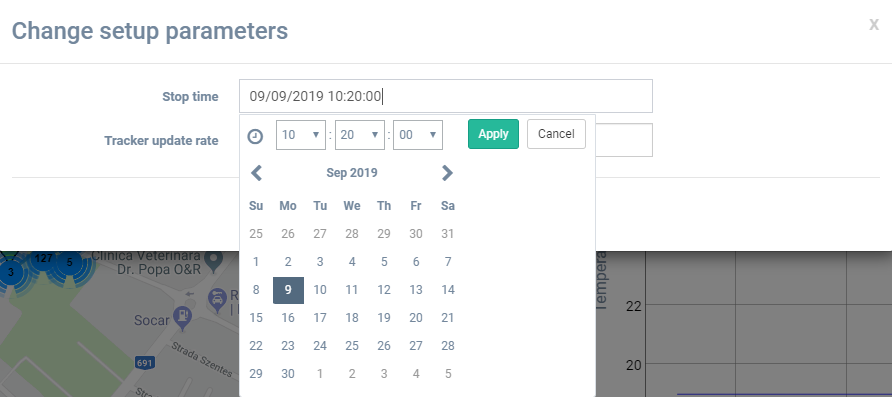

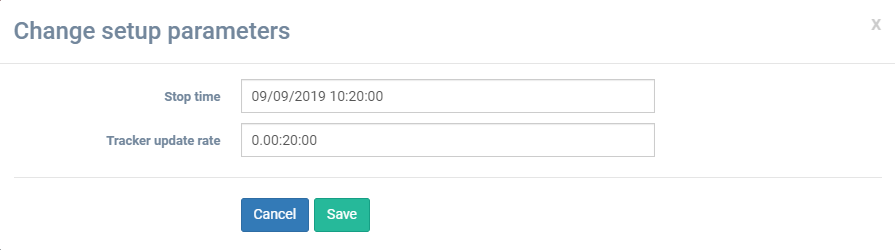

A new window Change setup parameters will appear.



Click on Stop time box.



Select the new stop time and click Apply button.

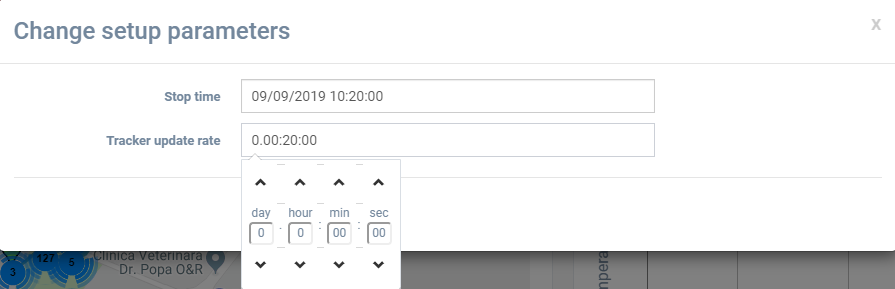

Click on Tracker update rate box.



Select the new update rate.

Click on button.

• Change tracker color on the temperature trend

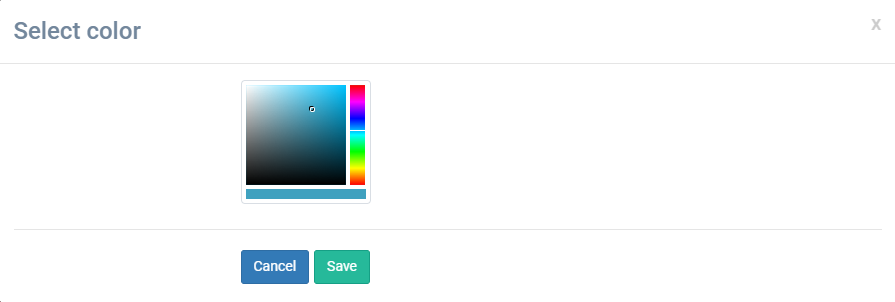

Click on Color icon button.



Select the new color for the tracker on the trend temperature.

Click on button.

• Battery update



If you put the cursor on the battery icon, the last update moment will be shown.
